Lifting material
glass, metal sheet
Cheap 600KG 1000KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
INTERESTED IN OUR PRODUCTS?
contact us

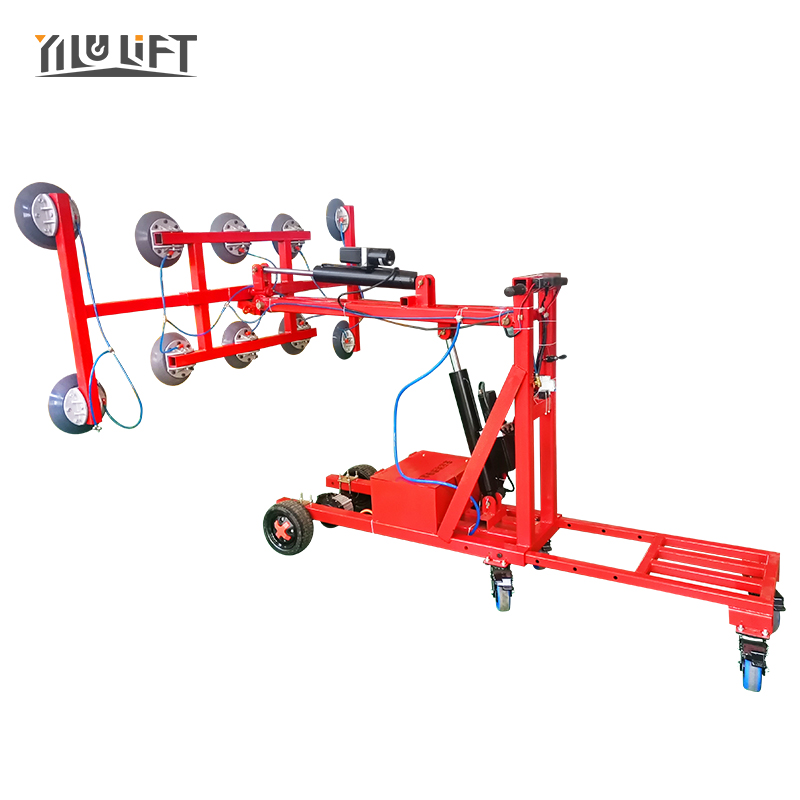

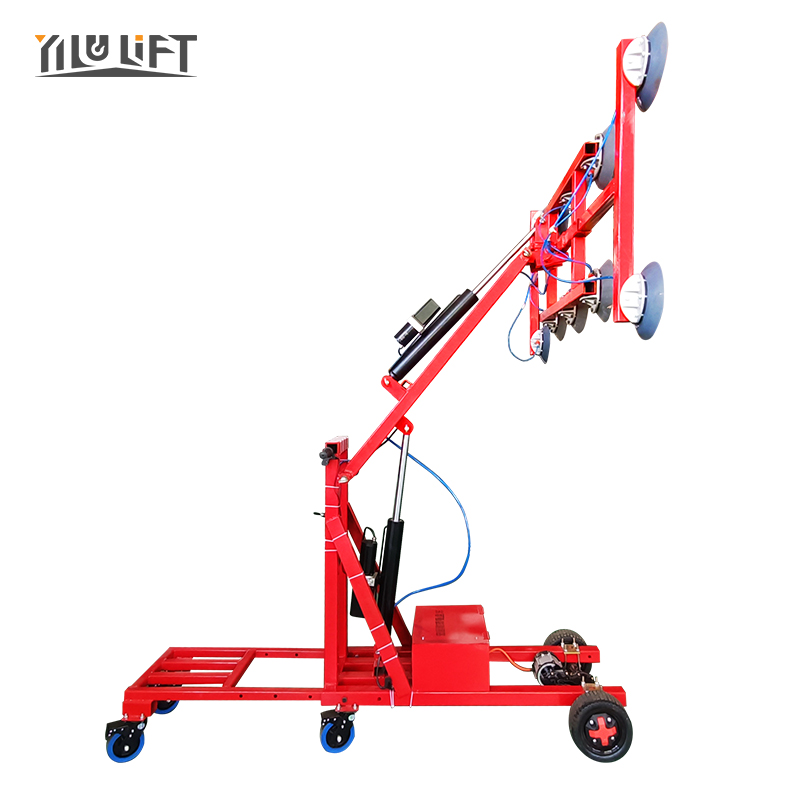

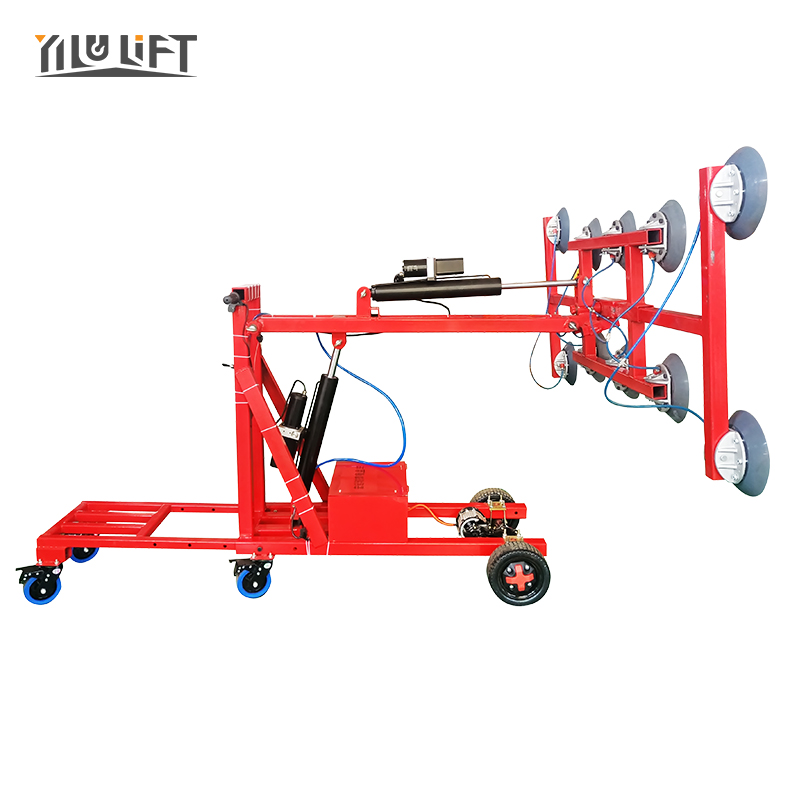

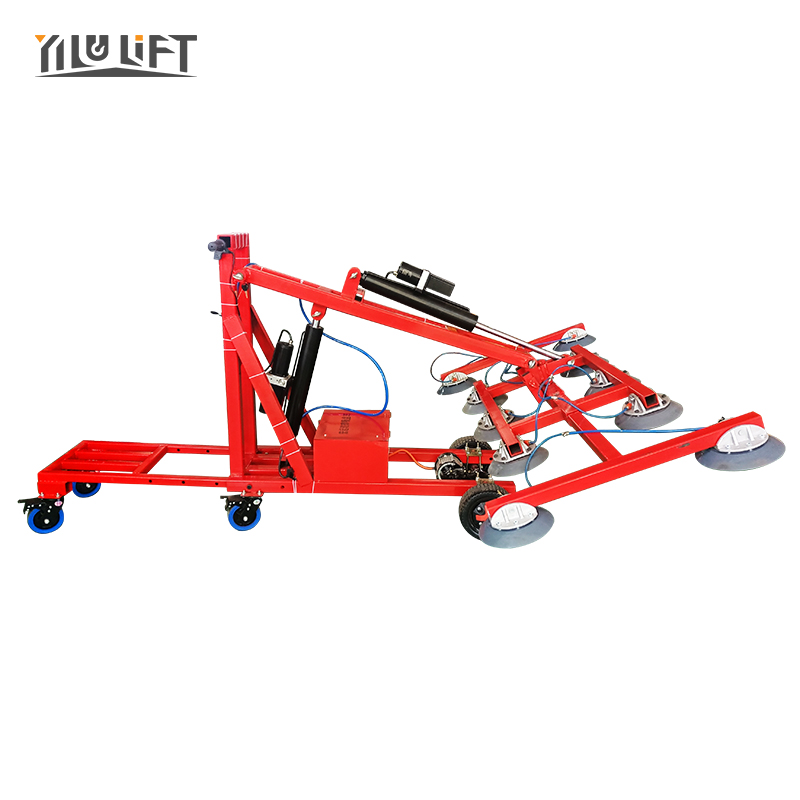

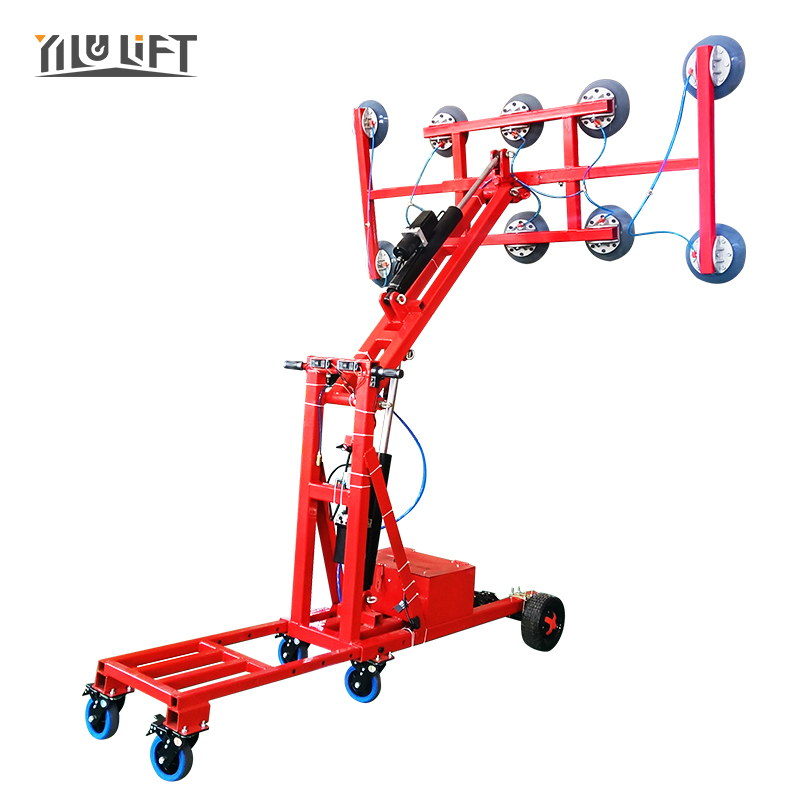

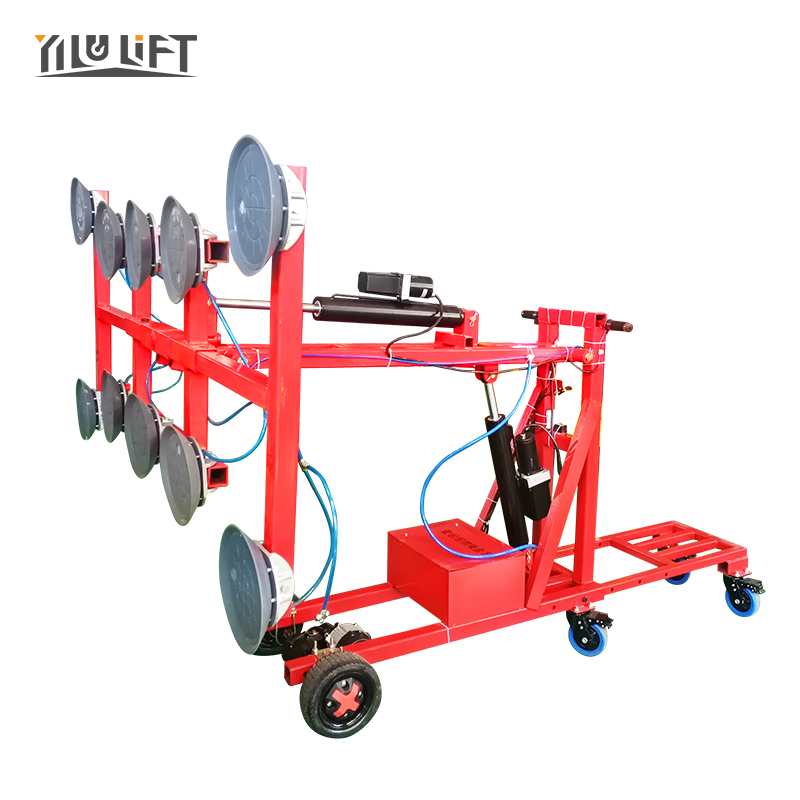

500KG 1000KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
|
Model Type |
GL-SD-400 |
GL-SD-600 |
GL-SD-800 |
GL-SD-1000 |
GL-SD-1300 |
GL-SD-1600 |
|
Load Capacity (kg) |
400 |
600 |
800 |
1000 |
1300 |
1600 |
|
Suction Cups Qty |
4 |
6 |
8 |
10 |
13/14 |
16 |
|
Suction Cups Diameter (mm) |
250 |
250 |
250 |
250 |
250 |
250 |
|
Battery (v) |
12 |
48 |
48 |
48 |
48 |
48 |
|
Degree Rotation (degree) |
360 |
|||||
|
Device |
Detachable |
|||||
|
Control |
Manual control |
|||||
|
Warranty (year) |
1 |
|||||
|
Universal Wheel (pcs) |
4 |
4 |
6 |
6 |
6 |
6 |
|
Core Components |
Motor, Pressure vessel, Pump |
|||||
|
Color |
Customization |
|||||
|
Safety Guarantee System |
After the power is off, the pressure can be maintained |
|||||
|
Dimension(L*W*H) (mm) |
2350*800*800 |
1300*1300*700 |
2000*1500*700 |
2200*1800*800 |
/ |
2200*1800*800 |
|
Net Weight (kg) |
250 |
330 |
350 |
500 |
/ |
800 |
