How Spider Crane Boom Length Affects Lifting Capacity and Reach

Spider crane boom length is an important factor influencing its lifting capacity and working range. The longer the boom, the further the crane can reach, but the further out the weight, the less the crane can lift due to the lever arm (distance from vertical) creating a lot more leverage on the crane structure.

The Relationship Between Boom Length and Lifting Capacity

The Role of Boom Length in Load Distribution

The boom length is another significant point that influences the lifting capability of a spider crane. The longer the boom, the more the load is spread over a larger distance, reducing the force on the base structure.

It is a fundamental aspect when it comes to operations involving heavy lifting or working with long reaches, as it provides the required stability. Alternatively, short booms direct the load closer to the crane’s center of gravity, which means higher lift capacities but not as much reach.

Spider cranes are very well designed, and equipped with powerful hydraulic systems and counterweights to avoid tipping over. Boom length vs load is carefully calculated during the design stages for different operational scenarios for safety and efficiency.

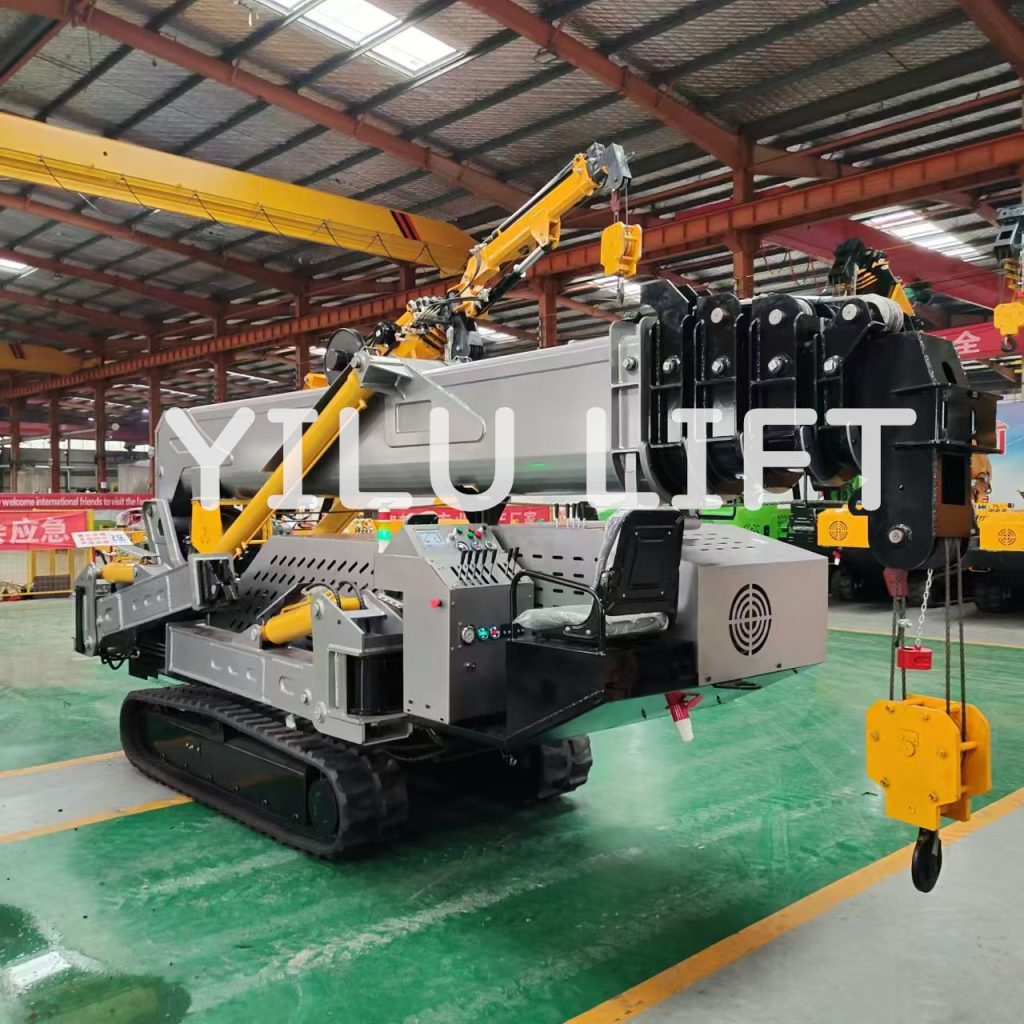

YILU LIFT Spider Crane Models Optimized for Lifting Capacity

If you find accuracy and reliability during lifting tasks, YILU LIFT manufactures the latest spider crane models. The crane cranes are designed with the latest technology to ensure maximum lifting capacity with versatility and compactness. They incorporate the latest technology for maximum lifting performance in the smallest, most flexible footprint.

How Boom Length Impacts Reach Capabilities

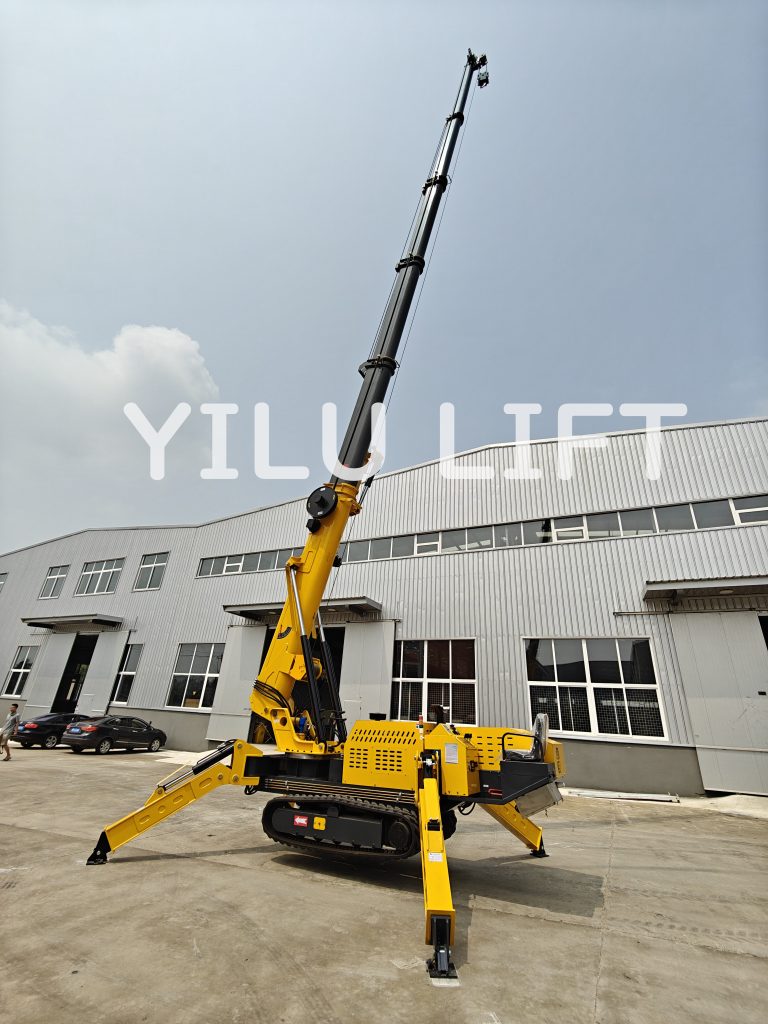

Vertical Reach Capabilities with Extended Boom Lengths

The spider crane’s vertical reach is determined by the length of the boom. Longer booms allow these cranes to provide assistance at higher elevations, which makes them ideal for projects like high-rise construction or maintenance on tall buildings.

Modern spider cranes utilize a telescopic action to extend the arm, with sensors measuring both the angle and length of the arm to extend and retract in compliance with service requirements without putting stability at risk.

Horizontal Reach Considerations for Spider Cranes

Horizontal reach is just as important, especially in tight spaces where movements are limited. Longer booms provide an extended horizontal reach, allowing operators to place loads exactly without moving the crane as often.

But as the boom goes outwards, the amount of force that can be lifted starts to diminish, simply due to levered forces acting on the base of the crane. To tackle this challenge, engineers use sophisticated stabilization systems and load monitoring systems to control it.

Engineering Aspects of Spider Crane Boom Design

Material Strength and Structural Integrity

Choosing materials with high strength-to-weight ratios is also part of the spider crane boom design. They also use lightweight yet durable alloys such as high-grade steel or aluminum. Rigorous testing under simulated load conditions further enhances the structural integrity of the boom, tested to endure dynamic stresses once in operation.

Innovations in Telescopic Boom Technology by YILU LIFT

Improvements in the telescopic boom design have changed what we can expect from a spider crane. YILU LIFT has made innovative strides in improving the precision and quality of telescoping features on the job site. With automatic locking systems, anti-sway mechanisms, and real-time monitoring sensors, their designs are industry standard.

Balancing Compactness and Performance in Modern Designs

The contemporary spider cranes manage to offer an ideal compromise of compactness and performance. These machines are compact enough to go into tight spaces but carry a lot of lifting capacity. Such a balance is obtained with careful engineering that leverages the functionality of each component without sacrificing any power or reliability.

Selecting the Right Spider Crane Based on Application Needs

Matching Boom Length to Project Requirements

Boom length is one of the most important aspects to consider when selecting a spider crane in consideration of your project needs. Vertical and horizontal reach ability is directly affected by boom length, and both of these are important when it comes to high-rise construction or other related jobs done in very confined spaces.

A larger boom is helpful for higher or farther-reaching points of contact but it can decrease lifting power since leverage forces are affecting the crane base. However, lifting capacities are limited to fewer options with shorter booms but provide higher lift capability; longer booms reach much more, but cannot lift as high.

YILU LIFT Recommendations for Diverse Operational Scenarios

If you are looking for a reliable and multi-purpose solution to use for many applications, YILU LIFT is here to offer a large variety of spider cranes to satisfy numerous operational needs. If you need a small type with the portability to take it indoors, or a commercial crane design envisaged for outdoor construction applications, they offer useful and safe designs.

With innovative designs that cater to both safety and efficiency, you will find a versatile model from them, be it a small unit for working indoors or a heavy-duty crane for outside construction sites.

Safety Considerations When Operating Spider Cranes with Extended Booms

Stability and Load Management Techniques

Using an extended boom on a spider crane requires extreme focus on stability and load. With the boom growing horizontally or vertically, the center of gravity changes location, which results in leverage forces on the base structural increasing.

Operators must then set stabilizers or outriggers to the manufacturer’s specifications to counteract this. It is also necessary that the crane is standing on firm and even ground.

During operations, load distribution is an important factor in stability. The load should never exceed the crane’s rated capacity for that boom extension. Overloading introduces the risk of mechanical catastrophes and is a safety hazard.

Advanced Safety Features in YILU LIFT Spider Cranes

Modern features have improved spider crane safety extensively. Anti-sway mechanisms, automatic locking systems, etc., make YILU LIFT models top line. These features help mitigate the risks of long booms by giving real-time feedback to drivers and safeguarding against loss of control over loads while in use. They have a professional engineering team.

In addition, emergency systems such as hydraulic oil pipe protection valves or anti-overload devices, etc, are included in their equipment systems. They are mechanisms that obstacles against failure by ensuring that the stress does not exceed the limits, and keep the integrity of the system.

FAQs

Q1: How to choose a spider crane?

A: Assess boom length, lifting capacity, site constraints and site or project-specific requirements before selecting a crane model.

Q2: What are the safety features of a spider crane?

A: Features like anti-sway mechanisms and load monitoring systems ensure stability and reduce risks during extended boom operations.

Q3: Can a spider crane be used indoors?

A: Yes, compact models are designed for indoor applications with features to improve performance in tighter spaces without sacrificing performance.
